Mining and quarrying

A reliable solution to optimize maintenance downtime and reduce overall operating costs.

Dilatoflex® rubber expansion joints and FLEXIL® expansion joints for pinch valves are designed to withstand the most demanding service conditions, offering excellent resistance to abrasion, dust, solar radiation, and high temperatures. Our extensive experience in mining and quarrying applications confirms that we offer one of the most reliable and efficient solutions on the market.

Advanced abrasion resistance for handling slurries and bulk materials

Rubber compound structure specifically designed for mining applications

The highly abrasion-resistant inner layer of Dilatoflex® expansion joints, combined with internal reinforcement and an external protective rubber layer, offers exceptional resistance to abrasive fluids and harsh external conditions.

Accessories designed to extend lifespan

Dilatoflex® expansion joints can be fitted with straight or conical deflectors. In applications involving fluids containing solid particles, these deflectors prevent direct contact between the rubber and the main flow, thus significantly reducing the risk of wear and extending service life.

High resistance to opening and closing cycles

The thickness of the body of the FLEXIL® expansion joints, combined with its internal reinforcement, allows it to withstand a high number of operating cycles while guaranteeing the tightness of the pinch valves.

Certifications & Quality

CEPED 2014-68-EU
ISO 9001Quality
ISO 14001Environment

Dilatoflex® provides you with tailor-made support throughout the life cycle of your projects.

See all

Reference Partners

Customers and partners who trust us around the world.

Eramet
NMC Nickel Mining Company
Our ranges & products

Our Dilatoflex® ranges & products

DILATOFLEX® expansion joints, including models for pinch valves, suitable for abrasive fluids, slurries and bulk materials encountered in mining and quarrying applications.

K Series

K Series

freestanding with rotating flanges

K Series
KP Series

KP Series

pressure up to 25 bars

KP Series
KT Series

KT Series

with integrated tie rods

KT Series
T Series

T Series

long travel, rotating flanges

T Series

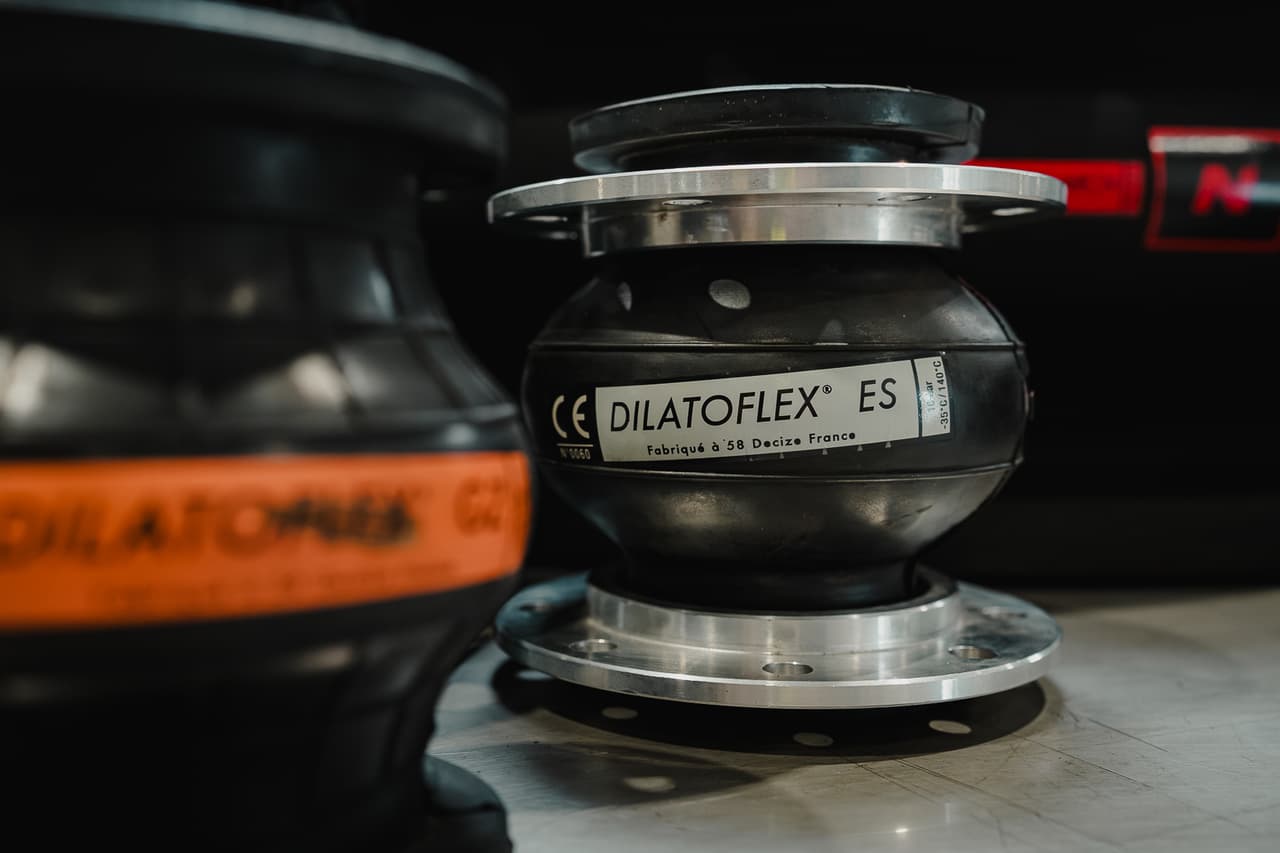

T Series ES grade

T Series ES grade

high temperature

T Series ES grade
NT Series

NT Series

small diameters with fixed flanges

NT Series
Kledil® Series

Kledil® Series

small diameters, threaded ends

Kledil® Series
KF1 Series

KF1 Series

with PTFE sheath

KF1 Series
M Series

M Series

large diameter adaptable to measure

M Series
N Series

N Series

large diameter and long travel

N Series
Special expansion joints

Special expansion joints

(dog bone)-U-BC1

Special expansion joints

Need technical assistance?

Dilatoflex® excellence serving resistance and reliability in mining and quarrying environments.

Contact us
YOUR QUESTIONS

Frequently Asked Questions

We are manufacturers of elastomer parts only and do not supply complete pinch valves. However, we offer FLEXIL® bellows designed for pinch valve applications in the mining and quarrying industry.

Two main criteria determine whether a straight or conical baffle should be selected. The first is based on fluid dynamics data, specifically the flow rate and associated pressure drop values. The second criterion concerns the expected lateral and angular movements of the piping system, or a combination thereof. A straight internal baffle is recommended when minimizing pressure drop and maintaining continuous flow are the primary requirements. However, its use limits the movement of the expansion joint to axial compression and extension only, excluding any lateral or angular displacement. In applications involving lateral or angular movements, a conical baffle is generally the only suitable solution. However, due to its geometry, the outlet cross-section is smaller than the inlet cross-section, resulting in some pressure drop.

FLEXIL® expansion joints are available in three different versions, selected according to the application. The most commonly used version is designed for abrasive fluids and is based on the ARCC grade elastomer compound. A second version is suitable for petroleum products such as oil, crude oil, and kerosene, with the HH grade elastomer compound. The third version is dedicated to acids and aggressive chemical fluids and is based on the YP grade elastomer compound. Concentrated chemical fluids are used for run-of-mine (ROM) processing in chemical facilities associated with mining operations.
