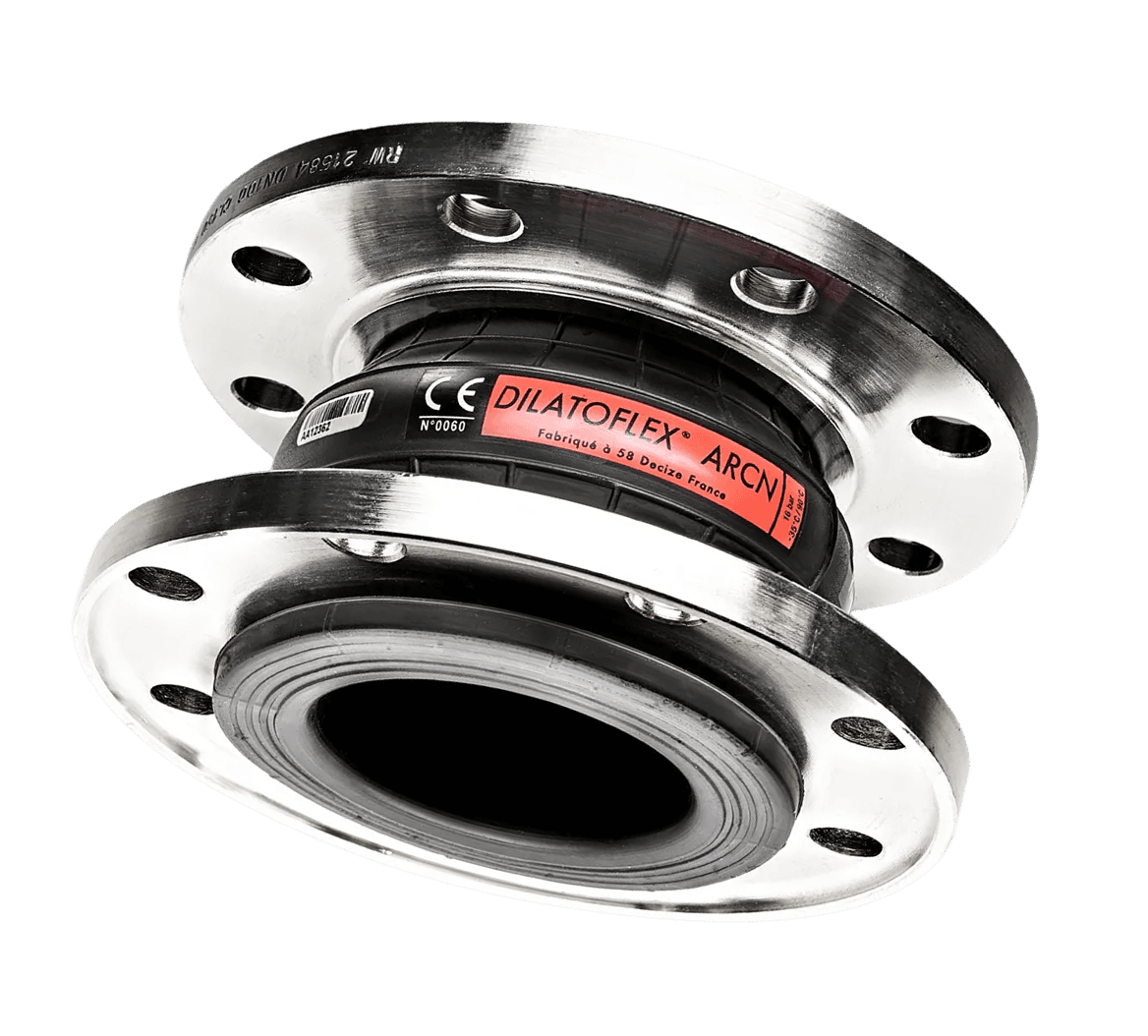

The real Dilatoflex® expansion joint

Recognized for its exceptional reliability, the DILATOFLEX® range embodies the excellence of French manufacturing expertise. Each expansion joint is the result of the meticulous work of our experts, guaranteed by rigorous tests. We guarantee a durable waterproofing solution, designed to withstand the most severe conditions.

The real Dilatoflex® expansion joint

DILATOFLEX® expansion joints guarantee safety in pipeline systems. They are flexible, dynamic and have an adaptable length.

Absorb expansion

Compensate for dimensional variations due to temperature changes (elongation/retraction).

Reduce vibration and noise

Insulate pumps, compressors and motors to avoid pipe fatigue and noise pollution.

Correct misalignments

Facilitate assembly and compensate for slight offsets during installation or structural movements.

Serving your industrial processes

Technical specifications of Dilatoflex® expansion joints

  • Water pipes and pipelines
  • Piping in the chemical industry
  • Piping in power, nuclear and thermal power plants.
  • Food industry
  • Heating installations

Pressure

Up to 25 Bar

Temperature

-35°C to +140°C

According to material

Diameters

DN 20 to DN 3000

Standard & custom

Movements

Axial/Lateral/Angular

According to range

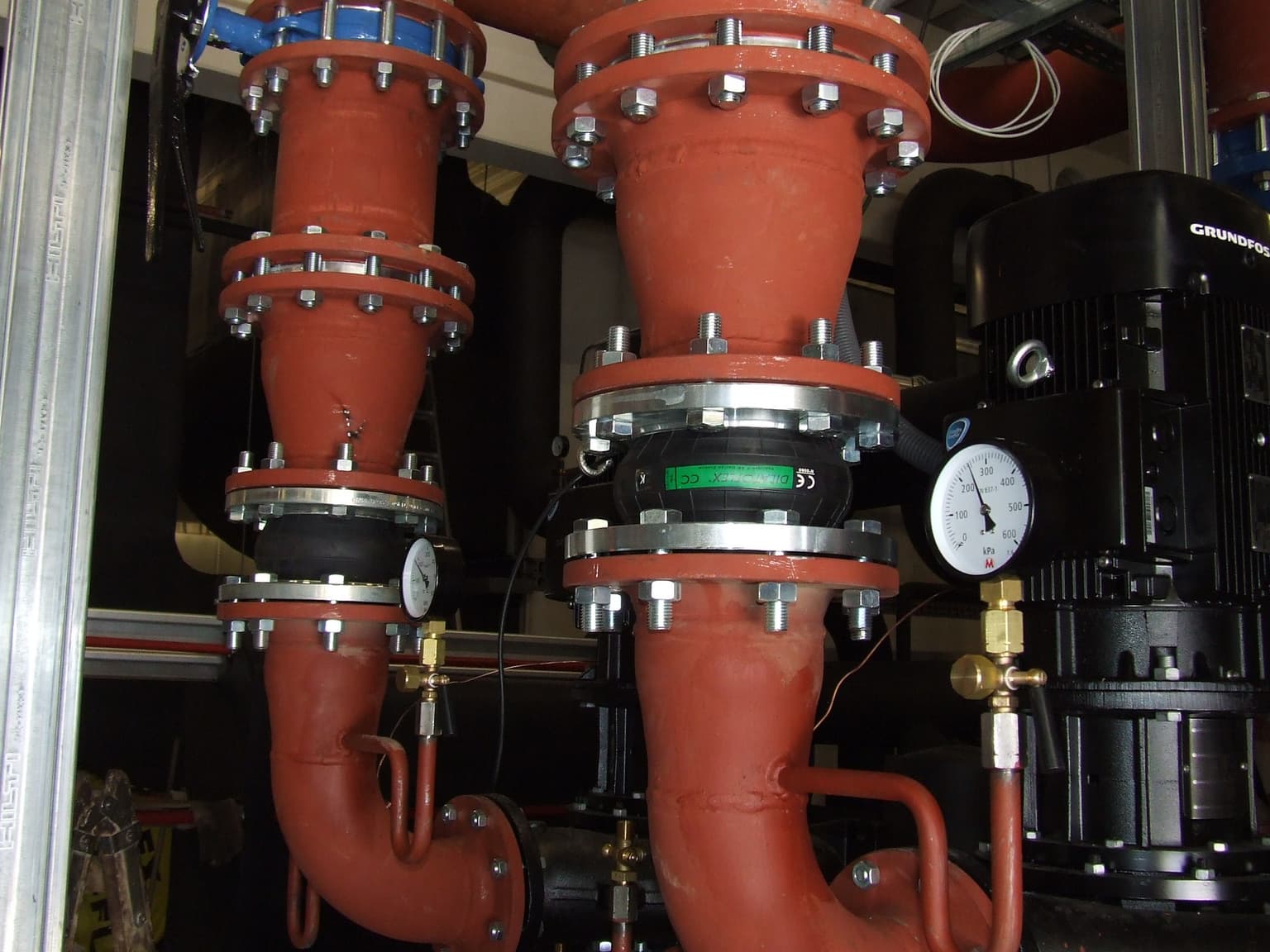

Reliable and flexible solutions for your installations.

Elastomer tube

The raw materials of the internal parts depend on the type of fluid.

Reinforcement (fabrics)

The mechanical characteristics are determined by the reinforcement and the shape of the convolution.

Elastomer casing

The mechanical characteristics are determined by the carcass and the shape of the convolution.

Reliable and flexible solutions for your installations.

Our Dilatoflex® ranges & products

The expansion joints designed by Anvis Decize SAS are flexible reinforced elastomer elements used in pipeline circuits

K Series

K Series

freestanding with rotating flanges

K Series
KP Series

KP Series

pressure up to 25 bars

KP Series
KT Series

KT Series

with integrated tie rods

KT Series
T Series

T Series

long travel, rotating flanges

T Series
T Series ES grade

T Series ES grade

high temperature

T Series ES grade
NT Series

NT Series

small diameters with fixed flanges

NT Series
Kledil® Series

Kledil® Series

small diameters, threaded ends

Kledil® Series
KF1 Series

KF1 Series

with PTFE sheath

KF1 Series
M Series

M Series

large diameter adaptable to measure

M Series
N Series

N Series

large diameter and long travel

N Series
Special expansion joints

Special expansion joints

(dog bone)-U-BC1

Special expansion joints
Our elastomer qualities

Our elastomer qualities

Designed for the most severe industrial installations, our expansion joints adapt to your needs. We have developed different qualities of elastomer to precisely meet the constraints of each application.

AR/CC
Central heating and air conditioning water, Abrasive or corrosive products
Industrial water
Sea water
Low temperature water vapor
16 bar max
-35°C+90°C
10 bar max
-35°C ≤+110°C
TE
Industrial water, acidulated water, diluted acids and bases
-25°C+100°C
HH
Industrial water and wastewater with traces of hydrocarbons, hydrogen and nitrogen gases.
-20°C+90°C
DWACS drinking water approval
Drinking water, cold and hot domestic water
16 bar max
-25°C+90°C
12 bar max
-25°C+105°C
GZ
Gaseous compressed air, fuel oil, petroleum products with aromatic content < 40%, domestic water
-20°C+90°C
F1GHS05 hazard pictogram: corrosive
Special highly aggressive products
-35°C+110°C
CC
Central heating and air conditioning water.
16 bar max
-35°C+90°C
10 bar max
-35°C ≤+110°C
EPC
Food products (IANESCO)
-25°C+95°C
YPGHS06 hazard pictogram: toxic
Strong acids and bases, harsh chemicals
-25°C+100°C
ES
Superheated water and water vapor
-35°C+140°C
AR/CN
Abrasive or corrosive products
Industrial water
Sea water
Low temperature water vapor
-35°C+90°C
SECTORS OF APPLICATION

Sectors and areas of application

Recognized for their reliability in the most critical environments, our expansion joints secure installations in many key sectors:

Need technical assistance?

Our team is at your disposal to assist you in the selection and sizing of your Dilatoflex® expansion joints
